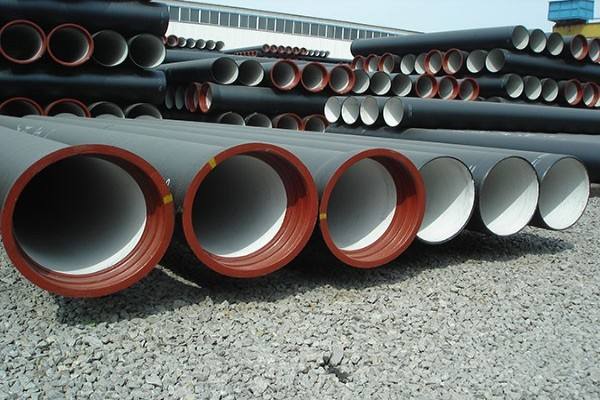

Cast Iron Pipe, cast iron casting molded pipe. Cast Iron Pipe is used for water supply, drainage and gas transmission lines, it includes cast iron straight pipes and fittings. Labor intensity is small. According to different casting methods, it is divided into continuous cast iron pipe and centrifugal cast iron pipe, of which centrifugal cast iron pipe is divided into sand and metal type two.
Caractéristiques
Cast Iron Pipe, cast iron casting molded pipe. Cast Iron Pipe is used for water supply, drainage and gas transmission lines, it includes cast iron straight pipes and fittings. Labor intensity is small. According to different casting methods, it is divided into continuous cast iron pipe and centrifugal cast iron pipe, of which centrifugal cast iron pipe is divided into sand and metal type two. According to the different materials are divided into gray cast iron pipe and ductile iron pipe. According to the different forms of interface is divided into flexible interface, flange interface, self-anchored interface, rigid interface and so on. Among them, flexible cast iron pipe with rubber ring seal; flange interface cast iron pipe with flange fixation, gasket rubber flange gasket seal; rigid interface general cast iron pipe with a larger mouth, straight pipe insertion, with cement seal, this process is now basically eliminated.
Castings are prone to internal stress during the casting cooling process, which may lead to casting deformation and cracking, in order to ensure the stability of the size and prevent deformation and cracking. For some large and complex castings, such as machine tool bed, diesel engine cylinder body, etc., it is often necessary to eliminate internal stress annealing treatment (also known as artificial aging) process specifications are generally: heating temperature 500~550 degree , heating speed is generally 60~120 degree /h, after a certain time of heat preservation, furnace cooling to 150~220 degree air cooling.
The surface layer of gray cast iron and some thin sections, due to the faster cooling rate, may produce white cracks, hardness increase, machining difficulties. Therefore, it is necessary to reduce the hardness of annealing, the process according to the casting wall thickness and cooling method according to the performance requirements, if mainly in order to improve the machinability, can use furnace cooling or 30~50 degree /h speed slow cooling if you need to improve the wear resistance of the casting, the use of air cooling, can get pearlite as the main matrix of gray cast iron.
